Panel Oyster
C050000100Stål 240 YP

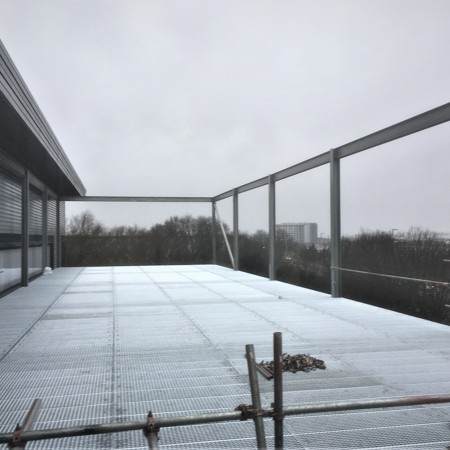

Optimalt styrke/vægtforhold og høj skridsikkerhed kendetegner den nye generation af stålpaneler til industri og byggeri. Testet til højeste klasse indenfor skridsikkerhed. CUBE Oyster paneler i stål lagerføres i standardlængder, som fx skæres til og svejses til riste eller trappetrin.
![CUBE-Plank-B-CUBE-Oyster-Steel-240YP-4000x500x42x2-Mill-Finish-C050210100-1.jpg](https://pcp.structpim.com/media/17904/cube-plank-b-cube-oyster-steel-240yp-4000x500x42x2-mill-finish-c050210100-1.jpg?anchor=center&mode=crop&rnd=132555789080000000&width=540&height=540,https://pcp.structpim.com/media/17904/cube-plank-b-cube-oyster-steel-240yp-4000x500x42x2-mill-finish-c050210100-1.jpg?anchor=center&mode=crop&rnd=132555789080000000&width=1080&height=1080 2x)
Specifikationer
- Skridsikkerhed: R13 = hældning >35° iht. DIN 51130
- Friareal: 50-56 %
- Optrækshuller: Oyster - serrateret ø6,5 mm
- Drænhuller: 34x34 mm
- C-C grid: 43,5 x 43,5 mm
- Lastkapacitet: 1,5 kN / 200 x 200 mm iht. EN ISO 14122
- Kuglekrav: 35 mm iht. EN ISO 14122-2
- Brand: Kritisk temperatur 550 °C
Produktet findes også i andre materialer
Downloads
-
PDF Drawing
-
Certificate
- CUBE OYSTER Steel 240YP Galvanised UKAS Physical Testing Report.pdf CUBE OYSTER Steel 240YP Galvanised UKAS Physical Testing Report.pdf https://pcp.structpim.com/media/17205/b-cube-oyster-steel-240yp-galvanised-ukas-physical-testing-report.pdf
- IFA DGUV Test Certificate 2019 22092 3210 - R13-V10 - CUBE Plank Grating OYSTER - Galvanised Steel.pdf IFA DGUV Test Certificate 2019 22092 3210 - R13-V10 - CUBE Plank Grating OYSTER - Galvanised Steel.pdf https://pcp.structpim.com/media/17686/ifa-2019-22092-3210-b-cube-r13-v10.pdf
-
Video
-
Brochure
-
Datasheet
Standard dimensioner
Få maksimal sikkerhed kombineret med moderne design til konkurrencedygtige priser med PcP CUBE.
L (mm) | B (mm) | H (mm) | T (mm) | Vægt pr. meter (kg) | Vægt pr. m² (kg) | Maks. spændvidde (mm) | Overfladebehandling | Lagerstatus | Varenummer | |
---|---|---|---|---|---|---|---|---|---|---|
4000 | 200 | 42 | 2 | 3,5 | 19,6 | 1400 | Ubehandlet | På forespørgsel | C050000100 | STEP |
4000 | 240 | 42 | 2 | 4 | 18,5 | 1400 | Ubehandlet | På forespørgsel | C050030100 | STEP |
4000 | 333 | 42 | 2 | 5 | 17,1 | 1200 | Ubehandlet | På forespørgsel | C050090100 | STEP |
4000 | 500 | 42 | 2 | 7 | 15,8 | 800 | Ubehandlet | På forespørgsel | C050210100 | STEP |
