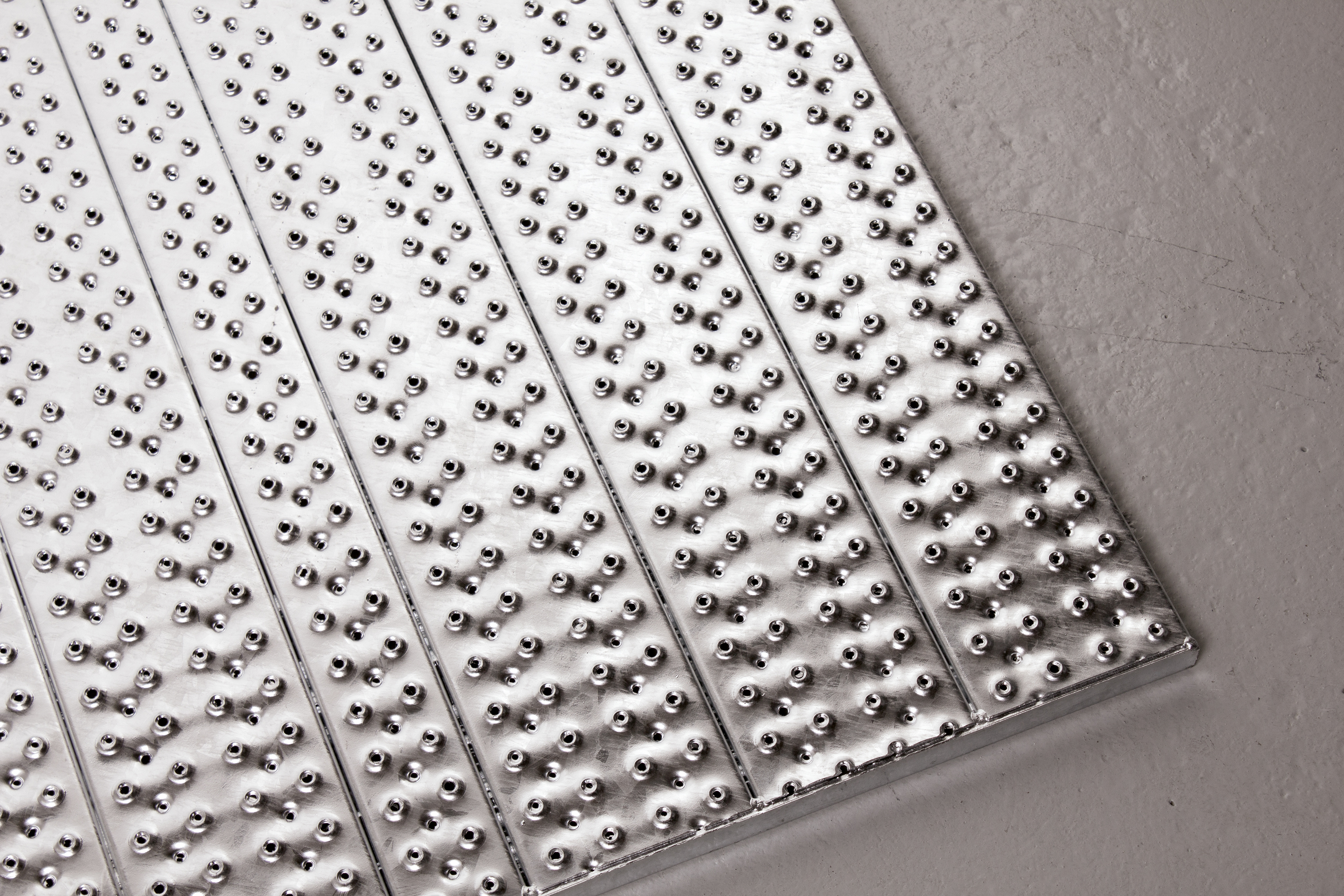

Plank grating LHD
F960166100Aluminium 3005-16 H66
Specifications
- PTV guidelines: 36+ Low Slip Potential acc. to BS 7976
- Dry PTV average: 91 multi-directional acc. to BS 7976
- Wet PTV average: 55 multi-directional acc. to BS 7976
- Slip resistance: R11 = 27° > slope > 19° acc. to DIN 51130
- Free area: 2,4 - 3,7 %
- Upward grip holes: dia. 6 mm
- Downward drainage holes: dia. 6 mm
- C-C grid: 72 x 36 mm
The product is also available in the material(s) below.
Standard dimensions
Get security and modern design at competitive prices with PcP OPTIMO.
| Finish | Item no. | |
|---|---|---|
| Mill Finish | F960166100 |
| Item no. | |
|---|---|
| F960166100 |
Downloads
-
Certificate
- IFA DGUV Test Certificate 1604091 - R11-V10 - OPTIMO Plank Grating LHD - Galvanised Steel .pdf IFA DGUV Test Certificate 1604091 - R11-V10 - OPTIMO Plank Grating LHD - Galvanised Steel.pdf https://pcp.structpim.com/media/17204/optimo-blechprofilroste-lhd-stahl-verzinkt-dguv-zertifikat.pdf
- OPTIMO LHD Physical Testing Report LHD Pattern .pdf OPTIMO LHD Physical Testing Report LHD Pattern.pdf https://pcp.structpim.com/media/17784/ukas-physical-testing-report-lhd-pattern.pdf
-
PDF Drawing
-
Video
- Fire Protection Gratings LHD® - Test by PcP .mp4 Fire Protection Gratings LHD® - Test by PcP.mp4 https://pcp.structpim.com/media/17719/fire-protection-gratings-lhd-test-by-pcp.mp4
- Fire Protection Gratings Type LHD® - Test by MFPA Leipzig .mp4 Fire Protection Gratings Type LHD® - Test by MFPA Leipzig.mp4 https://pcp.structpim.com/media/17717/fire-protection-gratings-lhd-test-by-mfpa-leipzig.mp4
- Fire Protection Gratings LHD® - Test by RISE Sweden .mp4 Fire Protection Gratings LHD® - Test by RISE Sweden.mp4 https://pcp.structpim.com/media/17304/fire-protection-gratings-lhd-test-by-rise-sweden.mp4
-
Brochure
-
Manual
-
Declaration of Performance
