Guardrail – Protection and Safety for Every Application

Through our comprehensive guardrail solutions, we aim to deliver safety, durability, and value across various industries and applications. Explore our key systems below – Industrial Handrail, Vertical Ladder System, Kick Flat System, Structural steel and Industrial Flooring. Available in standard or custom configurations to meet your specific needs.

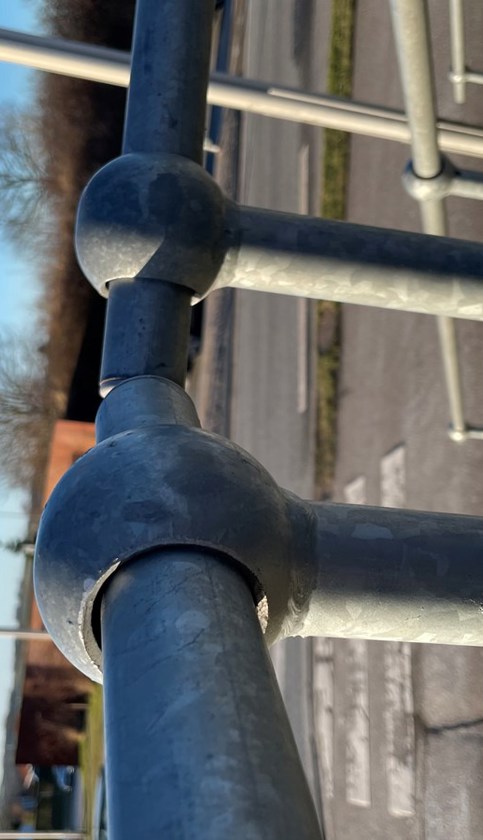

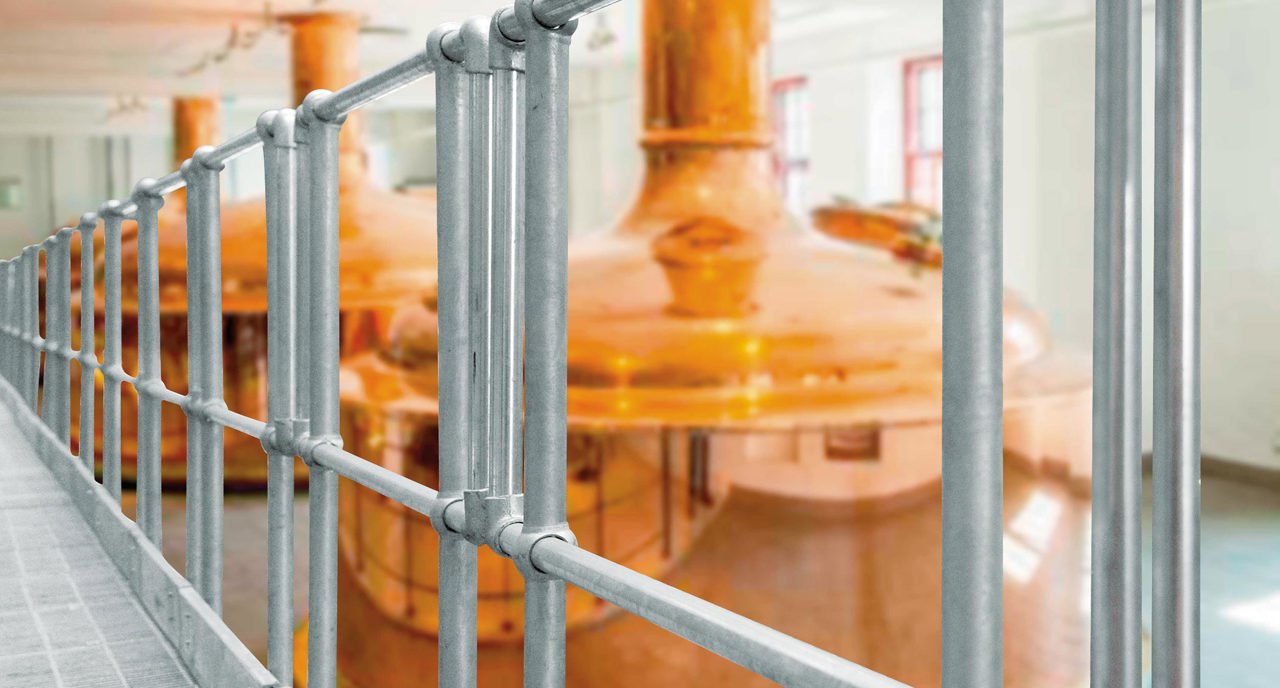

Ball Type Handrail Systems

Guardrail Handrail Systems comply with BS4592 and BS EN ISO 14122. Current regulations call for all platforms to have a protective barrier around all open sides, consisting of a handrail, at least one intermediate or knee rail, a toe plate (where above a working area) and handrail standards.

The top of the handrail shall be a minimum distance of 1100 mm above walking level and the distance from the top ‘handrail’ to the intermediate rail shall be a maximum of 500 mm.

When considering handrail system design, it is important to have the following information:

  • Loading Requirements to determine specification of handrail system. (see load table)
  • Fixing requirements, what fixing points are available and at what location, to determine base plate design.

Handrails can be manufactured from mild steel or stainless steel, we also supply infills, gates and specialized bends for working environments.

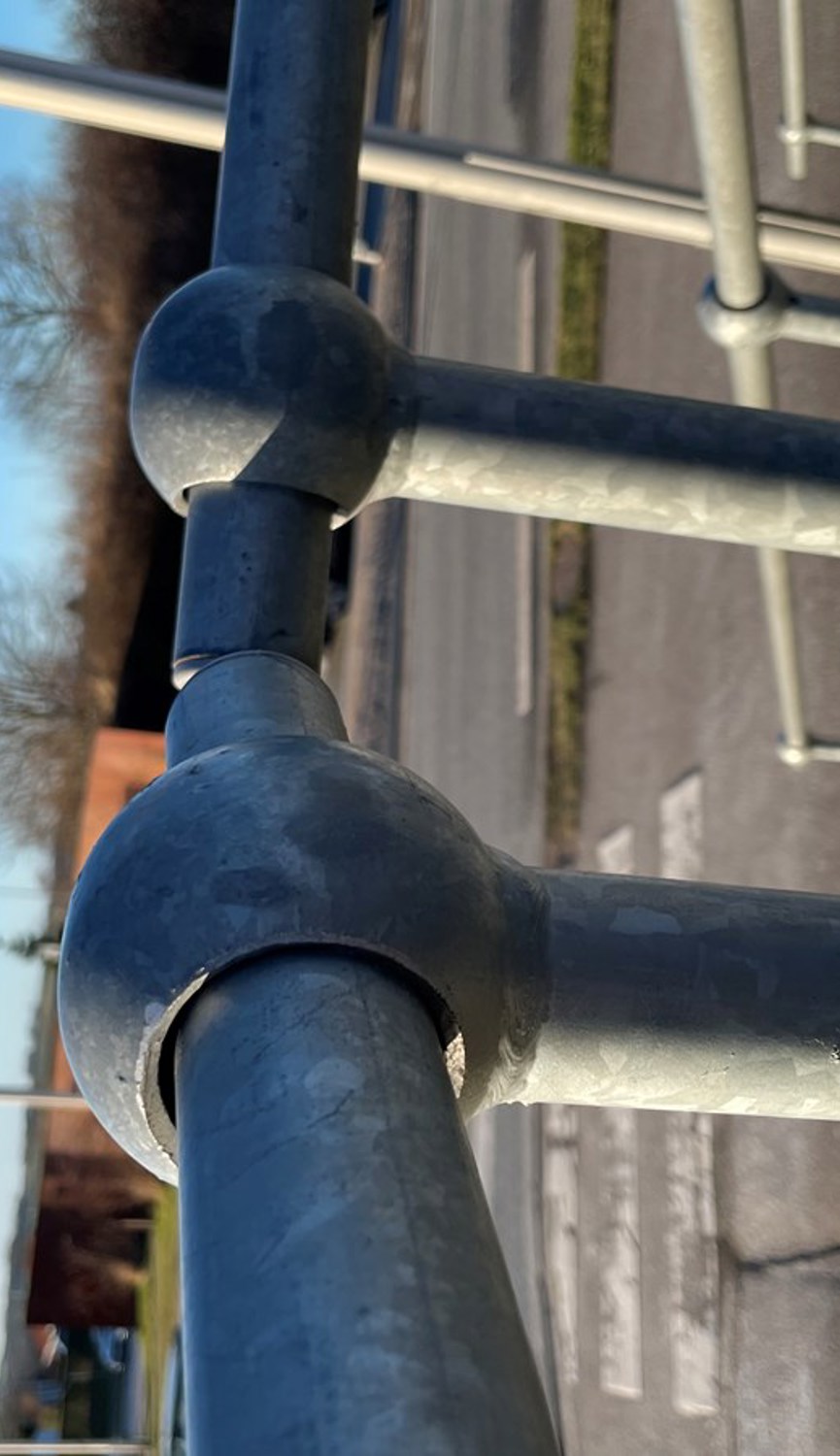

We manufacture tubular standards, which consist of tubular balls welded to tube and also solid standards which consist of solid forged balls welded to solid bar, both then have the require base welded to the shank depending of the requirement. Compared to alternatives the system requires reduced installation time, reduced risk of loose fixing and reduced requirement of standards.  Handrail standards can be manufactured with many variations including single ball stanchions, 3 ball stanchions and can be manufactured with special base plates. Where necessary gate hinges and kick plate brackets can be welded to the standards.

Ladder system AXESS - Vertical CAT Ladder System

Guardrail’s "AXESS" vertical permanent ladder system is of a safe, simple modular design offering individual parts which bolt together to form a complete ladder. Parts are ex stock for quick delivery or can be supplied as a complete ladder packed on a pallet for cost effective transportation, ready to erect on site. This system tries to eliminate the need for expensive site surveys and the preparation of detail drawings which also adds to delivery time.  The AX System is BS4211 compliant and is also supplied BS4211 and BSEN14122 compliant if required with the AXC System.

Health & Safety
The design and production of AXESS components is in accordance with relevant British Standards and Euro-norms for the health and safety conscious.


Flexible
AXESS is usually available “off the shelf” and is flexible enough to solve the majority of vertical access problems.


Easy to install
AXESS is straightforward to bolt together / install on site and is usually supplied in “flat-pack” form for ease of handling, storage and transportation.

Typical examples
Guardrail’s AXESS CAT ladder system is straightforward and easy to install. Download the following pdf’s for AX models to suit typical rises.
Typical 2000, 2500 and 3500 mm rises
Typical 3000 and 4000 mm rises
Typical 4500 and 5500/6000 mm rises (PDF files links missing)


Our Vertical CAT ladder component system eliminates the need for expensive site surveys and the preparation of detail drawings.

Industrial platform

Industrial flooring

Industrial flooring comes in many shapes and sizes to suit a variety of applications within the workplace. Elevated platforms, stairs and walkways are a few prominent examples of where this material is used. The slip resistant attributes of flooring is always an important factor when considering which type to use; as safety is paramount on all sites. Guardrail offer a range of solutions including perforated flooring products that provide high slip resistance, excellent drainage and comply to the latest British Standards. These can all be designed to meet a range of loadings from minimum maintenance up to plant equipment and even higher design loads. All of which can be supplied fully fabricated finished and galvanised ready to fit.

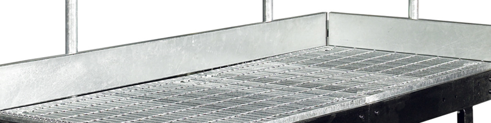

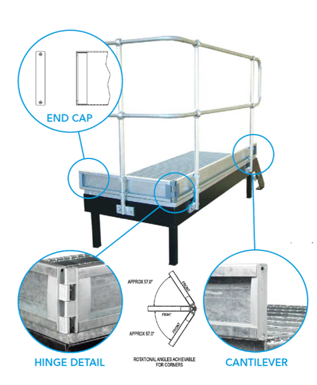

Kick Flat System



Protective barriers on open sides of walkways and platforms should, in part, consist of a kick-flat ( or toe-board ) to restrict objects falling from height and causing possible injury. The minimum height of the kick flat upstand from walkway level should be 100mm, kickplate is required where walking level is above a working area.Guardrail ”C” Section Kick Flat System is ex-stock in 3m lengths, lengths that can either be cut on site or shop fabricated to suit customer requirements.
These coupled with ’U’ type post connections give a flexible, easy to fit and aesthetically pleasing product that can be part of a new installation or retro fitted to bring existing areas up to the requirements of the latest regulations.

IMG 5729

Insurance Certification

Guardrail is Bruun approved to BS EN ISO 9001, 14001, 45001 & 1090 to EXC 2.


We offer a high-quality service and conform to the latest British Standards.

About us - Guardrail Engineering

Guardrail manufacture industrial ‘ball type’ handrailing systems, "AXESS" vertical CAT ladder systems, staircases and access platforms, which are supplied to structural & coastal engineers, architects & consultants, fabricators and general industry alike. We can design and manufacture in mild or stainless steel with a range of protective finishes that suit various applications.
