The Original™ mesh grating

Solutions for industry, construction and architecture. The function of gratings is seen in countless variations - for applications in all branches of industry and construction.

At PcP, we meet requirements like ball-proof and load capacity, tailoring gratings to their purpose. Serrations can enhance slip resistance.

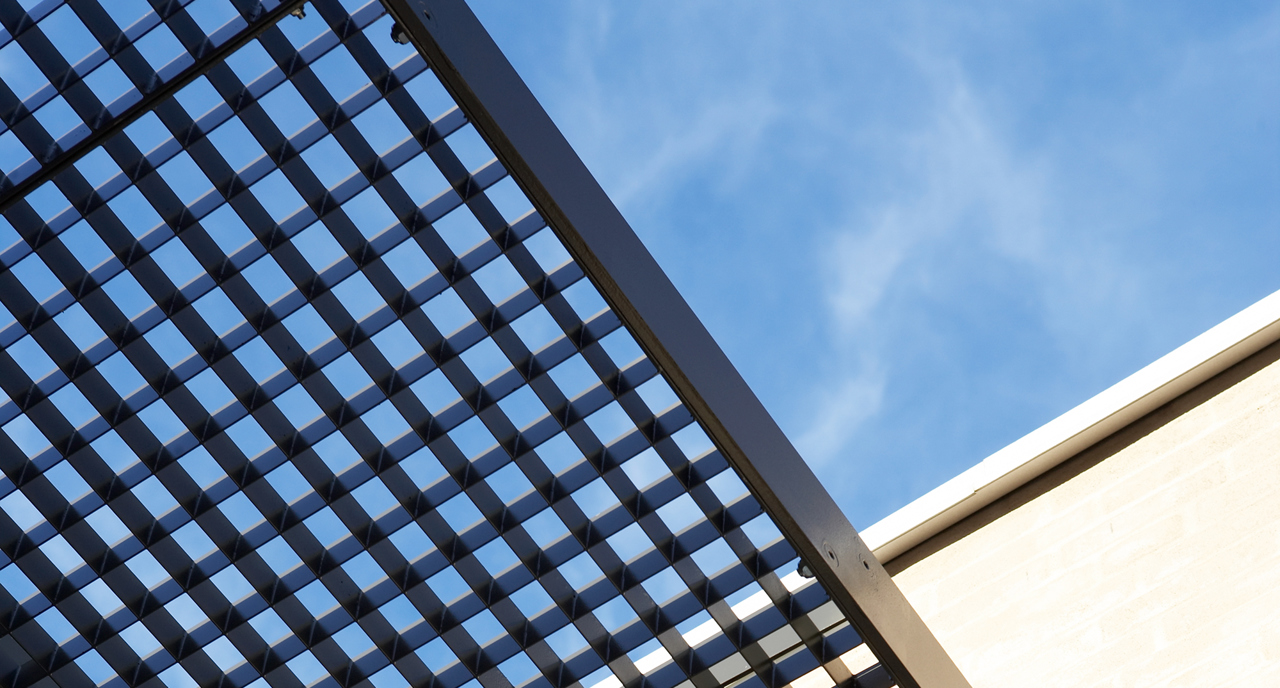

Baastad Tennis Stadium MESH Gratings Brise Soleil And Ceiling22

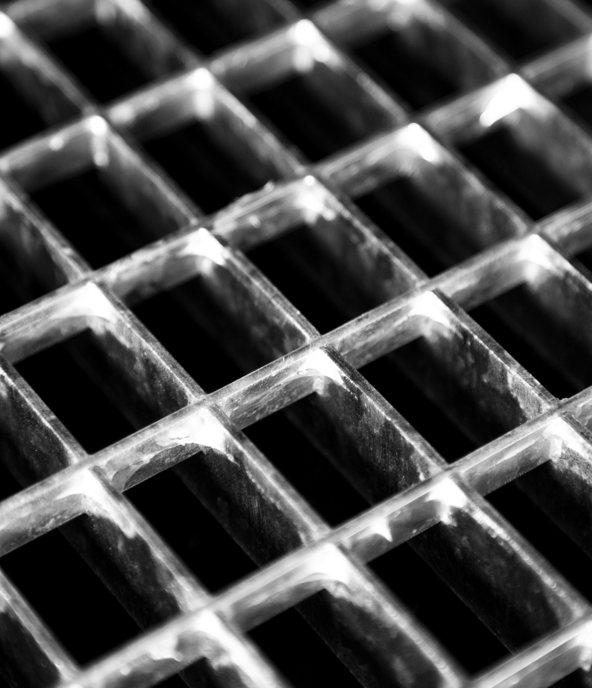

What is a mesh grating?

PcP’s mesh gratings are composed of flat bars in both directions with bearing bars aligned in the span direction and cross bars positioned perpendicular to the bearing bars. The cross bars, are pressed into specially formed grooves in the bearing bars under high pressure. We manufacture these in two variations. “Pressure-Locked” (press-lock) & “Pressure-Welded” (press-weld also known as forge welded, electro welded & fusion welded) the latter having the addition of an electrical current of approximately 1500°C passed through at the same time of pressing. Both processes securely bind the components into a durable grating.

The gratings are then framed with another flat bar around the edgeson all four sides. Where the edging bars meet at the corners, they are welded to further enhance the grating’s stability. Additionally, an appropriate number of bars are welded to the edging bars for extra reinforcement.

Mesh grating sizes

PcP’s steel grating are available in sizes ranging up to 3000x1500mm subject to specification, material and weight We can produce gratings, flooring panels, and stair treads in precise dimensions with cut-outs suitable for any application. Whether you need solutions for walkways, stairs, platforms, façades, ceilings, or other purposes, our goal is to help you create safe and efficient designs.

Materials
PcP’s mesh gratings are available in a range of materials, including:

  • Steel 240 YP
  • HSS420, high-strength steel
  • Stainless steel 1.4301 (AISI 304)
  • Stainless steel 1.4404 (AISI 316)
  • Aluminium*
  • Corten

*Only available in pressure locked

IMG 6186

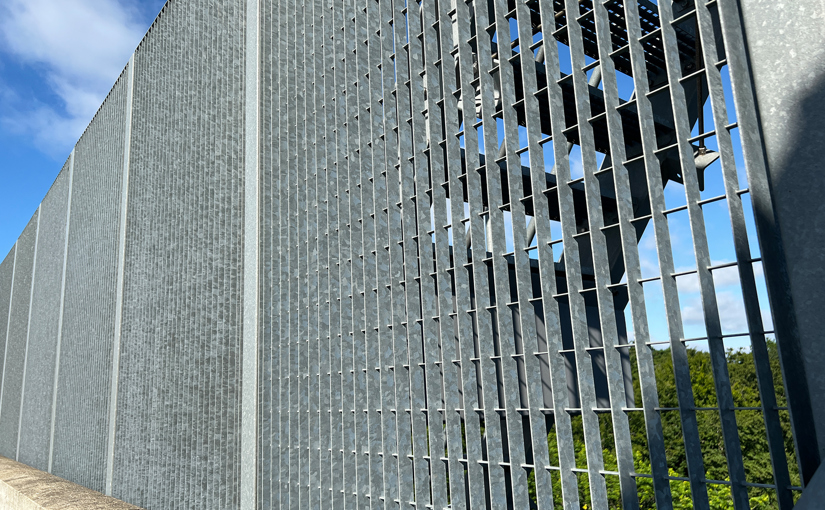

Little Belt Bridge Mesh Gratings Staircase Walkway 20220621 071259603 Ios

Standard or customised steel mesh grating

No matter the industry or application, we can help you create the right solution to meet your project criteria. We specialise in designing and manufacturing bespoke solutions for projects both large and small within industry, construction, and architecture.

When you collaborate with PcP, you’ll receive support throughout the entire process—from design and development to production and delivery.

Mesh gratings deliver versatility, durability, high free area and safety

Mesh gratings and stair treads offer a wide range of options for industries such as construction, offshore, energy, and transportation. PcP’s ELEFANT® products are certified to European standards, including EN 14122 and EN 1991.

Untitled1

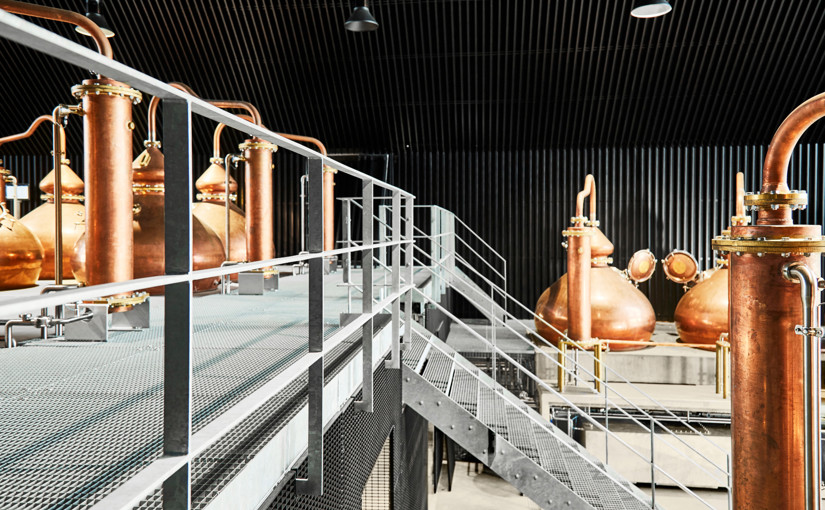

Stauning Whisky gains a work platform over 1000 m²

PcP delivered a customised solution featuring press-welded gratings and stair treads for Stauning Whisky’s work platform. The platform spans over 1000 m² and stands 3.2 metres high. The grating panels were designed and manufactured to the client’s exact specifications.

Need customised or standard steel gratings?

Our mission is to help our customers create safe and effective solutions. Send us an enquiry, and we’ll assist you in finding the ideal solution for your project. Steel ELEFANT® gratings can be delivered with the cut-outs commonly required for specific projects. Let us help you identify the perfect solution for your application.

What is an Original ELEFANT® Grating?

ELEFANT® grating is a specialised mesh grating designed to endure heavy loads in industrial and architectural applications. Its durability and strength make it ideal for scenarios where standard gratings are insufficient. At PcP, we ensure compliance with all relevant standards, including ball proof and load-bearing requirements, tailored to each grating’s specific use case. Elefant grating, also known as mesh grating, is a versatile and robust solution for countless applications across industries and construction.

Different types of elefant gratings are available to meet various needs.

  • Gratings with legs: These come with robust support legs, enhancing strength and stability under significant loads, a critical feature in safety-conscious industrial settings.

  • Gratings with frames: Reinforced with a solid frame, this type improves structural integrity and ensures the grating maintains its shape even in demanding applications.

For projects requiring bespoke solutions, PcP offers alternatives such as CUBE™ stair treads in steel and stainless steel. These integrate seamlessly into staircases, combining safety and functionality to handle daily traffic in industrial environments.

Ristens Laengde Angiver Baereretningen

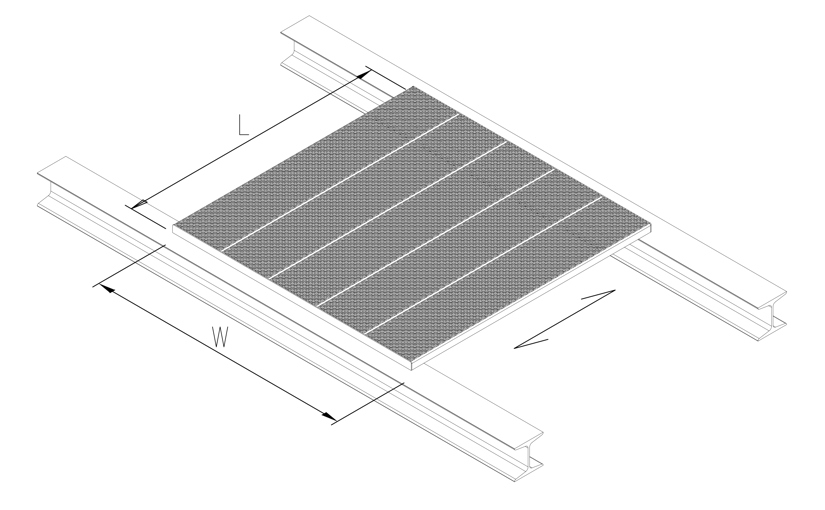

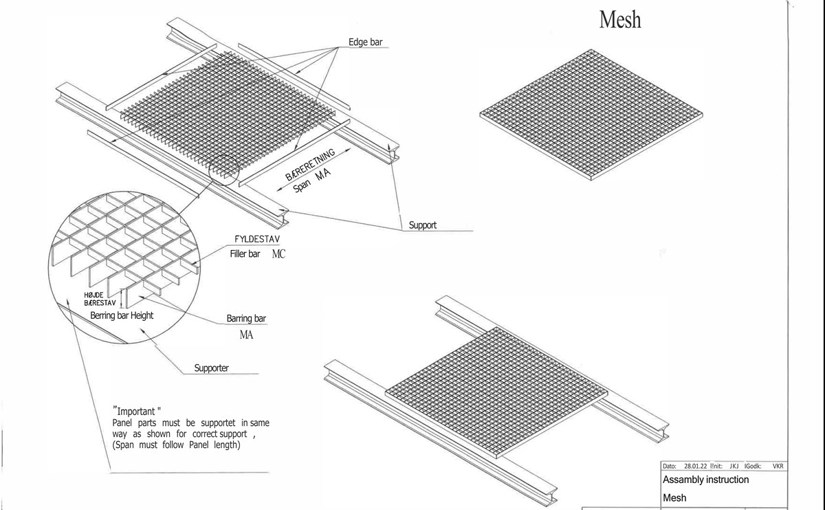

How to determine ELEFANT® grating dimensions

The length of an elefant grating corresponds to the span direction:          L = Length of grating in bearing direction (total span direction)

W = Width of grating

SPAN

Span is the distance between supports.

EXAMPLE

A grating measuring 1000 x 1500 mm has 1000 mm in the span direction and 1500 mm in width.

CONVERSELY

A grating measuring 1500 x 1000 mm has 1500 mm as its span length and 1000 mm as its width.

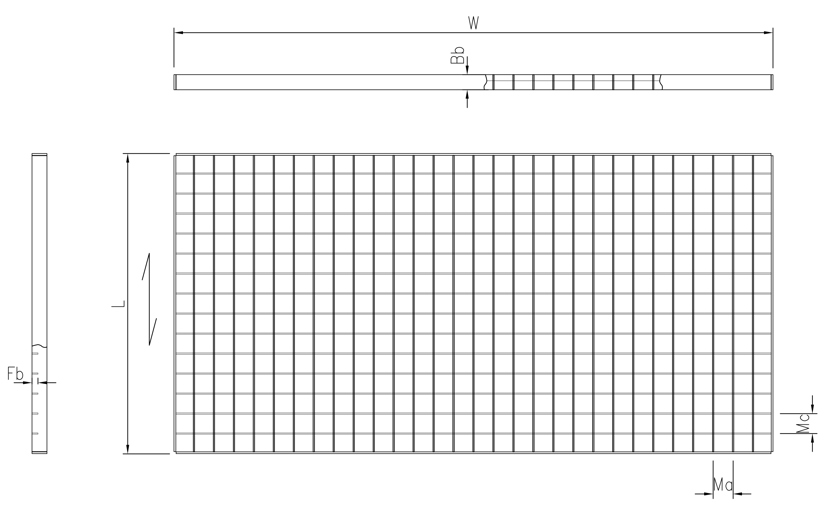

Mesh Grating Drawing

Mesh and components in elefant gratings

Ma: Centre distance between load bars

Mc: Centre distance between cross bars

Bb: Load bars

Fb: Cross bars

Es: Edging bar

Elefant V&A 16July18 015

Elefant gratings customised or standard

PcP offers a wide selection of standard gratings available for next-day delivery, such as the 50x100 elefant grating. For projects with unique requirements, our flexible production capabilities enable cost-effective and swift manufacturing of customised gratings.



Regardless of the industry or application, we can help you customise the right solution to match your project requirements. We specialise in designing and manufacturing tailored solutions for both small and large projects within construction, engineering, and the food and beverage industries. When you collaborate with PcP, you benefit from comprehensive support throughout the entire process—from design and development to production and delivery of the gratings.



Elefant gratings, mesh gratings, and treads can be produced to precise dimensions with cut-outs for any application, such as platforms and walkways, stairs, façades and ceilings, and more. Our mission is to help our customers create safe and reliable solutions. Send us an enquiry, and we will assist you in finding the best solution. Mesh gratings can also be delivered with custom cut-outs frequently required for various projects. Let us help you identify the ideal solution for your specific project.

Examples of mesh sizes – endless combinations

Mesh sizes are described by the distance between load bars (Ma) and cross bars (Mc) and are denoted as Ma/Mc. To avoid misunderstandings, abbreviations are used in descriptions.

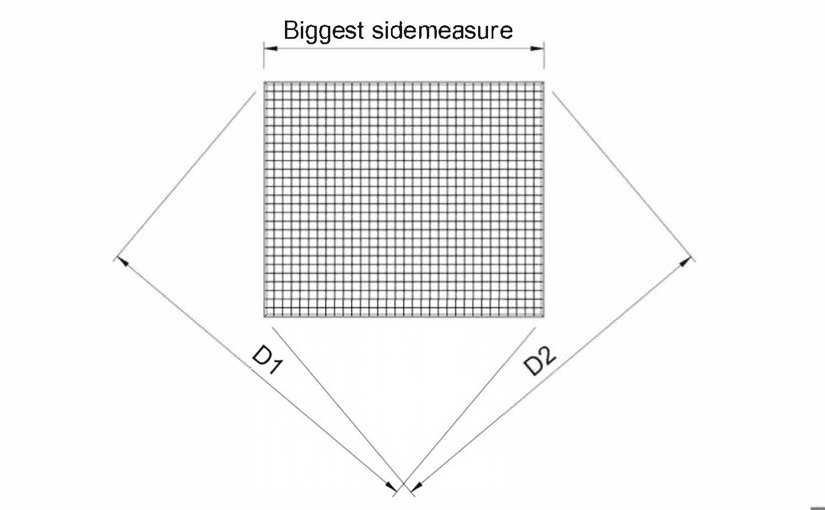

Mesh Grating Diagonal Measurement (1)

Diagonal measurements (cross measurements)

The difference between D1 and D2 must not exceed:
± D1 - D2 = 0.012 x Largest Side Dimension

Where:

D1: Diagonal measurement 1

D2: Diagonal measurement 2

Largest Side Dimension

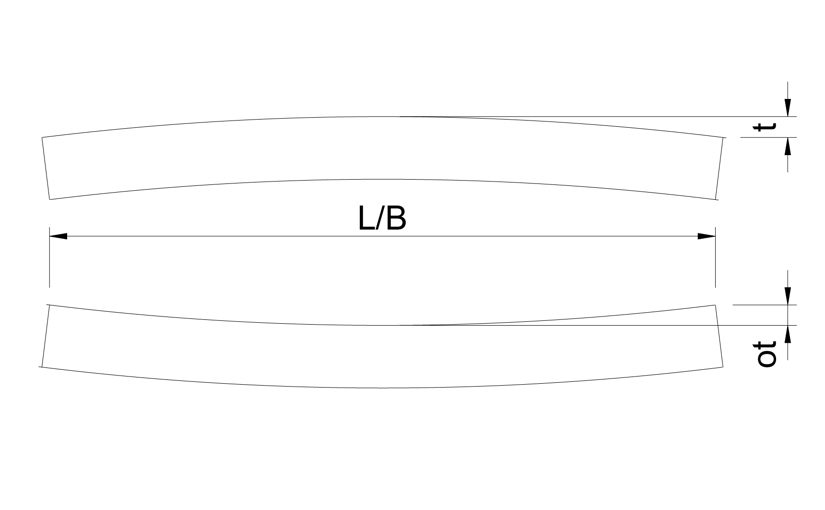

Mesh Grating Curved Measurement

Bow measurements, width & length

For L/W > 450 mm: 1/150 x L/W, but maximum 8.0 mm

For L/W ≤ 450 mm: Maximum 3.0 mm

For L/W > 600 mm: 1/200 x L/W, but maximum 8.0 mm

For L/W ≤ 600 mm: Maximum 3.0 mm

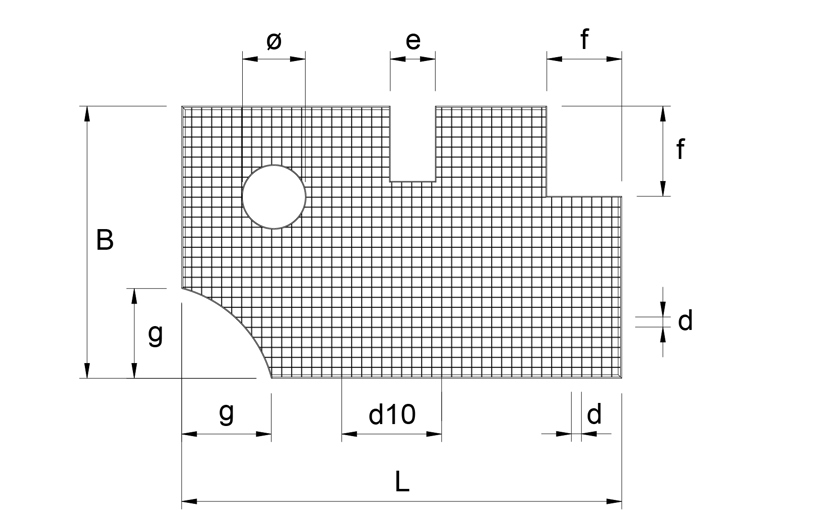

Mesh Grating Cutouts Measurement

Side, cut-out, and mesh measurements

L & W: +0 / -4 mm

d: ± 1.5 mm

d10: ± 4.0 mm (across 10 meshes)

f, e, g, Ø: +8 / -0 mm

Tailormade solutions or standard products?

Interested in advice to find the right product or tailormade solution? Contact us and one of our experts will contact you.

IMG 5843

Contact us!

Our experienced team of experts are ready to advice you about regulations and help you find the right product or solution for your project.
